TREND Networks VFF5 Single & Multimode
Технически документи
Спецификации
Brand
TREND NetworksProduct Type
Fibre Tester
Cable Type
Single & Multimode
Connector Type
Fixed ST, Fixed SC, Fixed FC
Operation Test Distance
5km
Battery Type
AA
Wavelength
650nm
Battery Life
80h
Length
220mm
Diameter
32 mm
Weight
136g
Standards/Approvals
No
Power Source
Battery
Includes
Battery, User Manual
Model Number
VFF5
Maximum Operating Temperature
50°C
Minimum Operating Temperature
-10°C
Детайли за продукта

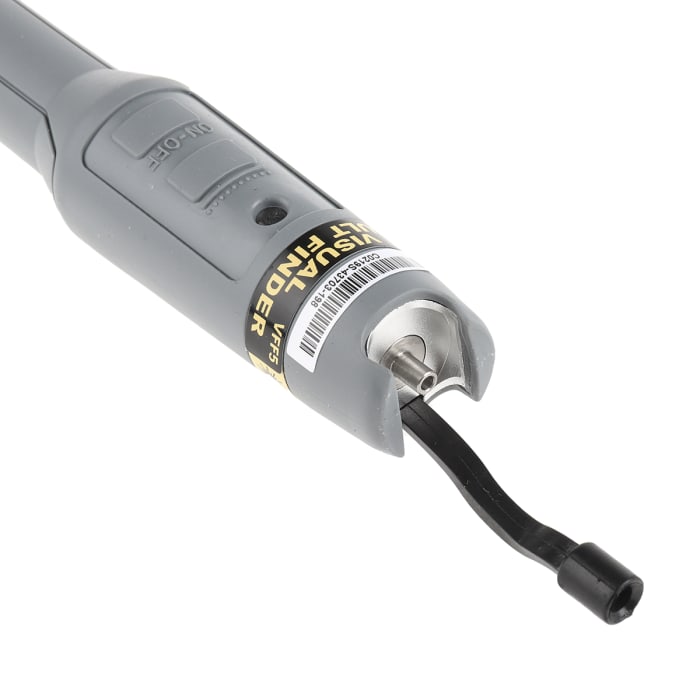

Fiber Optic Visual Fault Finder
The hand held VFF5 visual fault finder is a light source used to locate breaks and bad connections in fibre optic cables. It is ideal to verify continuity, test and find breaks in LAN's, fibre data links and loops. The VFF5 is easy to use as it projects a red light into a fiber optic cable and when the user looks at the cable and light can be seen, this means there is a break.
The VFF5 can be used over 5km into both multimode fiber and single mode fiber and can be used with single mode and multimode cable. This pocket-sized tool is compact and lightweight with rugged metal housing and comes with a 2.5 mm standard connector that accepts ST, SC and FC optical connectors.
Finds breaks, faulty splices and crimps, poor components or connections
Slim, pocket sized and battery powered
Can be used for both single-mode and multimode cable with a 4km range
Continuous (CW) or Modulated (MOD; 1Hz Pulse) modes
Accepts ST, SC and FC connectors
Requires 2 x AA batteries (stock no. 591-225)
Supplied with
Holster
Integrated rubber port cover
Lanyard
Cell-phone style belt clip
Instruction sheet
Batteries
Информацията за складовите наличности временно не е налична.
€ 212,15
€ 212,15 Всеки (ex VAT)
1
€ 212,15
€ 212,15 Всеки (ex VAT)
Информацията за складовите наличности временно не е налична.
1
