STMicroelectronics iNemo Accelerometer Sensor Adapter Board DIP-24

Номер на артикул на RS: 875-0920Марка: STMicroelectronics№ по каталога на производителя: STEVAL-MKI161V1
brand-logo
Преглед на всички в Home

Технически документи

Спецификации

Brand

STMicroelectronics

Sensor Technology

Accelerometer Sensor

For Use With

DIP-24

Kit Classification

Adapter Board

Kit Name

iNemo

Детайли за продукта

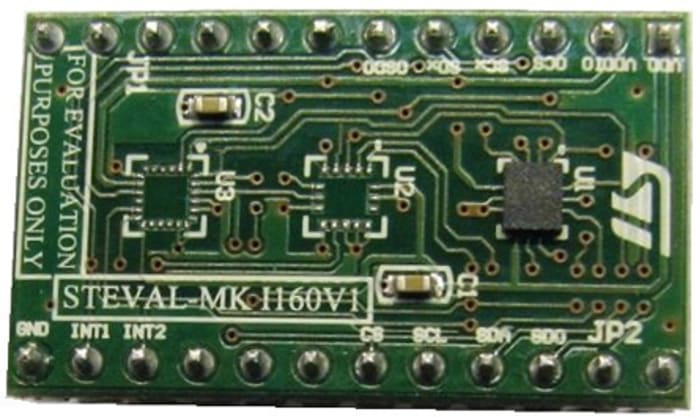

LSM6DS0 iNEMO Inertial Module Adapter Board for DIP24 Socket, STMicroelectronics

The STEVAL-MKI161V1 is an adapter board designed to evaluate the LSM6DS0 iNEMO inertial module, featuring a 3D accelerometer and 3D gyroscope. The LSM6DS0 has two operating modes in that the accelerometer and gyroscope sensors can be either activated at the same ODR or the accelerometer can be enabled while the gyroscope is in power-down.

The board can be plugged into a standard DIL24 socket allowing access to the complete LSM6DS0 pinout.

Analogue supply voltage 1.71V to 3.6V
Independent power supply for I/O (1.71V min.)
“Always on” eco power mode down to 1.8mA
Three independent acceleration channels and three angular rate channels
±2g / ±4g / ±8g full scale acceleration
±245dps / ±500dps / ±2000dps full scale angular rate
SPI/I²C serial interface
Embedded temperature sensor
Embedded FIFO

Sensor Interfaces, STMicroelectronics
