MikronTec, 52 Blades Thread Pitch Gauge

Name: MikronTec, 52 Blades Thread Pitch Gauge
Brand: MikronTec
SKU: 3049193
Availability: LimitedAvailability

Номер на артикул на RS: 304-9193Марка: MikronTec

Преглед на всички в Измерватели за резба

Технически документи

Спецификации

Brand

MikronTec

Product Type

Thread Pitch Gauge

Number of Blades

Maximum Imperial Measurement

62TPI

Minimum Imperial Measurement

4TPI

Minimum Metric Measurement

0.25mm

Maximum Metric Measurement

6mm

Standards/Approvals

ANSI/ESD S20.20:2014, BS EN 61340-5-1:2007

Страна на произход

Germany

Детайли за продукта

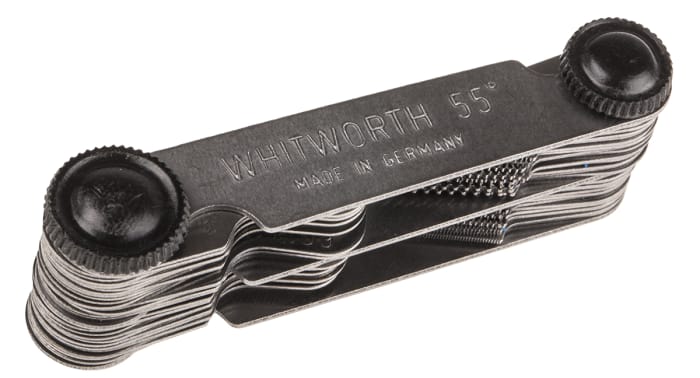

52-Blade Steel Metric/Whitworth Thread Pitch Gauge

A 52 sheet blade thread pitch gauge, designed to determining the gradient for external and internal threads. Useful for checking tool angle while cutting threads in metal turning lathes. The angles on the thread cutting tool is checked on the V slots in the gauge.

Features and Benefits

• Pitch gauge accurately measures internal and external screw threads
• 52 Blades
• Blades individually stamped with accurately formed thread profiles.
• Rotary switch, can be freely adjusted.
• Thread Gauge No. 175

Specifications

Material: steel
Accuracy: ±0.07 mm
Folded length: 66 mm
Width: 22 mm
Unfolded length: 110 mm
Unfolded Width: 55 mm

Measuring range

• 0.25-6.0 mm: 0.25, 0.3, 0.35, 0.4, 0.45, 0.5, 0.6, 0.7, 0.75, 0.8, 0.9, 1, 1.25, 1.5, 1.75, 2, 2.5, 3, 3.5, 4, 4.5, 5, 5.5, 6 mm
• 4-62 TPI: 4, 4 1/2, 5, 6, 7, 8, 9, 10, 11, 12, 13, 14, 16, 18, 19, 20, 22, 24, 25, 26, 28, 30, 32, 36, 40, 48, 60, 62 TPI

Standards

DIN13/14

Преглед на всички в Измерватели за резба

Информацията за складовите наличности временно не е налична.

€ 6,21

€ 6,21 Всеки (ex VAT)
