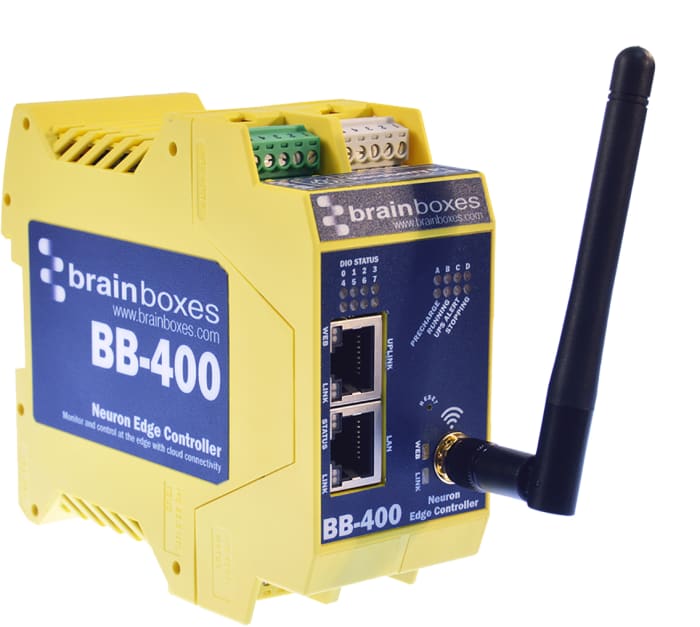

Brainboxes Neuron Edge Industrial Computer 15 W Broadcom BCM2837 1.2 GHz 4 Linux

Brainboxes Industrial Hubs and Switches

The Brainbox is 1 (Ethernet LAN), 1 (Ethernet Uplink) RJ45 port industrial hub. It has an electrical rating of 5 to 30VDC and has 8 digital IO lines. Multiple hardware interfaces allow for communication with many different types of equipment and machinery.

Features and Benefits

• Easy to use interface via the Industrial Edge Controller, powered by an industrialised Raspberry Pi and Arduino (Linux and Raspbian open software).
• Combines 8 Industrial I/O lines, Serial port and Network Connections within
• compact DIN mount design.
• Comes with easy to use secure web interface.
• Incorporates Raspberry Pi Compute Module CM3+ 32GB.
• Process data locally and send to the cloud. Use our built-in software or write your own with open source tools.
• Use Node-RED Graphical Programming Interface for rapid development.
• Develop on Pi and deploy seamlessly to Industry.
• -25°C to +80°C op temp range, 5-30VDC dual power input with built in mini UPS.
• Multiple ways to connect within compact DIN mount design.
• Detachable Wi-Fi antenna.
• UPS power management.
• Edge processing sends relevant data to your application or the cloud.
• Customise with APIs and docker containers.

Applications

• Industrial use
• Use out-of-the-box applications

FAQs -

• https://www.brainboxes.com/faq/section/industrial-controller
