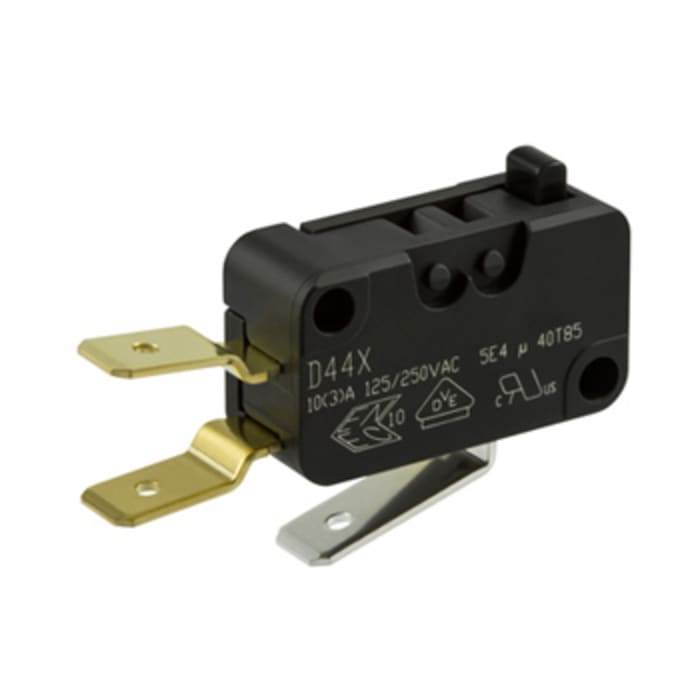

ZF Button Microswitch, Tab Terminal, 10 A @ 250 V ac, SPDT
Технически документи
Спецификации
Brand
ZFActuator Type
Button
Terminal Type
Tab
Contact Current Rating
10 A @ 250 V ac
Contact Configuration
SPDT
Operating Force
5 N
Minimum Operating Temperature
-40°C
Maximum Operating Temperature
+85°C
Contact Material
Silver Cadmium Oxide
Operating Temperature Range
-40 → +85°C
Детайли за продукта
Standard 3mm Gap
A standard format V3 SPDT microswitch with a 3mm internal contact gap
Actuator material: Nylon/Acetal
Microswitch snap action is retained whilst providing increased protection against flashover
Dimensions: H15.9mm x W10.3mm x D27.81mm
Case material: Nylon; Polyester
Approvals
UL /C-UL recognised; ENEC
