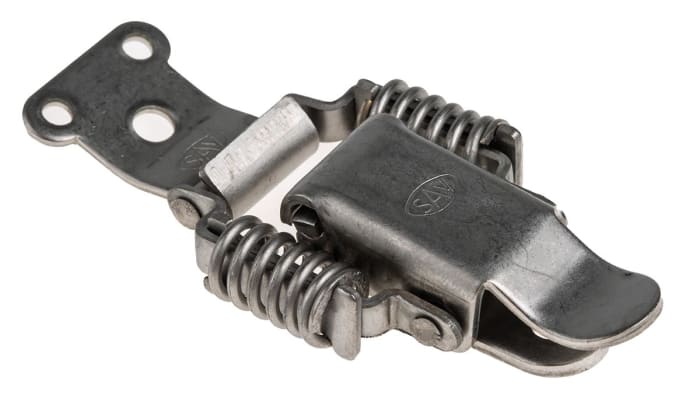

Savigny Steel,Spring Loaded, 53 x 35 x 17mm

Номер на артикул на RS: 206-4624Марка: Savigny№ по каталога на производителя: 40002 EZB
Преглед на всички в Резета за врати

Технически документи

Спецификации

Brand

Savigny

Material

Steel

Spring Loaded

Yes

Operating Tension

294N

Dimensions

53 x 35 x 17mm

Depth

17 mm

Length

53mm

Width

35mm

Страна на произход

France

Детайли за продукта

Compact Variable Tolerance Latch

Similar in design to the variable tolerance versions but smaller.

Wide positioning tolerance created by the spring mechanism
Failsafe design prevents over extension of links
Operating tension is 20 kgf when distance between Catch fixing hole centres and the furthest Latch fixing hole centre is 63.2 mm
Maximum operating tension is 30Kgf.
Use 4 ´ M4 screws for fixing

Supplied with

dimensions template for marking out.
