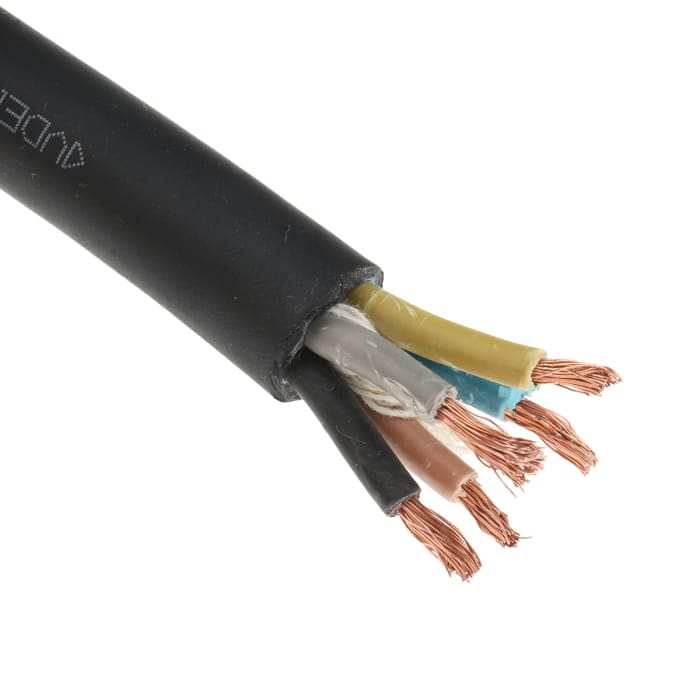

RS PRO 4 mm² 5 Core Power Cable, H07RN-F, Black CPE, 100m
Технически документи
Спецификации
Brand
RS ProCross Sectional Area
4 mm²
Number of Cores
5
Sheath Colour
Black
Length
100m
Current Rating
36 A
Outer Diameter
16.9mm
Sheath Material
CPE
CPR Certification
Eca
Voltage Rating
450 V, 750 V
European Harmonised Code
H07RN-F
Conductor Strand Type
Stranded
Conductor Resistance
4.95 Ω/km
American Wire Gauge
11 AWG
Number of Strands
56
Minimum Operating Temperature
-25°C
Standards Met
VDE 0285-525-2-21
Fire Behaviour
Flame Retardant
Insulation material
EPR
Core Strands
56/0.286 mm
Size of Strands
0.286 mm
Maximum Operating Temperature
+60°C
Conductor Material
Copper
Страна на произход
China
Детайли за продукта
RS PRO H07RN-F Harmonised Rubber Insulated Mains Cable
From RS PRO a high-quality heavy duty and hard wearing H07RN-F flexible harmonised mains power cable with rubber insulation and chloroprene or polychloroprene rubber jacket. This cable has a voltage rating of 450 to 750 V and is designed for use in demanding industrial environments
Standards
VDE0282
€ 1 053,44
€ 1 053,44 1 Reel of 100 Metres (ex VAT)
1
€ 1 053,44
€ 1 053,44 1 Reel of 100 Metres (ex VAT)
