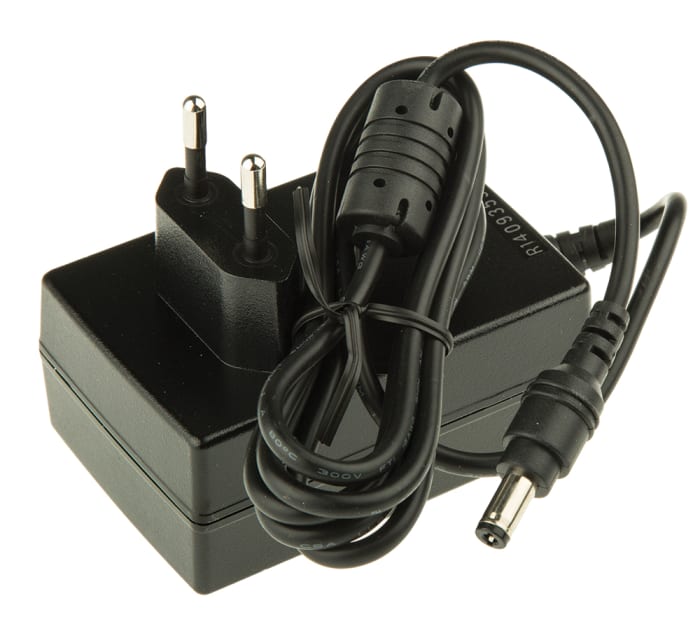

MEAN WELL 18W Plug-In AC/DC Adapter 12V dc Output, 1.5A Output
Технически документи
Спецификации
Brand
Mean WellAdapter Type
Plug-In Adapter
Plug Type
Type C
Output Voltage
12V dc
Input Voltage
100 V ac, 110 V ac, 115 V ac, 120 V ac, 127 V ac, 220 V ac, 230 V ac, 240V ac
Output Current
1.5A
Maximum Temperature
+70°C
Output Connector
2.1 x 5.5 x 11 mm Centre Positive
Input Connector
EU Plug
Number of Outputs
1
Power Rating
18W
Cable Length
1.2m
Standards Met
CB, CE, EN 55022 Class B, EN 61000-3-2,3, EN 61000-4-2,3,4,5,6,8,11, GS, MIL-HDBK-217F, TUV EN 60950-1, VI
MTBF
500kh
Series
GST18E
Load Regulation
±3%
Length
79mm
Width
54mm
Type
AC/DC Adapter
Depth
33mm
Minimum Temperature
-30°C
Детайли за продукта
Mean Well GST18E Series Plug-In Power Supply
Mean Well GST18E series of industrial 18 W power supplies offer a highly reliable desktop styled solution to a wide variety of power management solutions. The GST18E series comes equipped with a 2 pole Euro AC inlet, allowing for an input range of 85 V ac to 264 V ac. This series of power supplies boast an efficiency rating of up to 89%, coupled with an extremely low no-load consumption rating of below 0.075 W.
The Mean Well GST18E series is a series of power supplies well suited for both consumer & industrial power solutions.
Features and Benefits
•Level VI energy efficiency rating.
•2 pole Euro plug.
•Class 2 power with earth pin.
•Fully enclosed casing, constructed to adhere to 94V-0 flame retardant standards.
•Equipped with industry standard protection, such as short circuit, overload & over voltage.
•LED indication of power status.
•Operating temperature of up to 70°C.
Typical Applications
•Industrial equipment.
•Telecoms devices.
•Office facilities.
•Consumer electronic devices.
Standards
EU ErP & CoC V.5.
Mean Well Plug-In Power Supply
Информацията за складовите наличности временно не е налична.
Моля, проверете отново по-късно.
€ 23,20
Всеки (ex VAT)
1
€ 23,20
Всеки (ex VAT)
1
Купете в насипно състояние
| количество | Единична цена |
|---|---|
| 1 - 4 | € 23,20 |
| 5 - 9 | € 22,03 |
| 10 - 24 | € 20,87 |
| 25 - 49 | € 19,72 |
| 50+ | € 19,00 |
