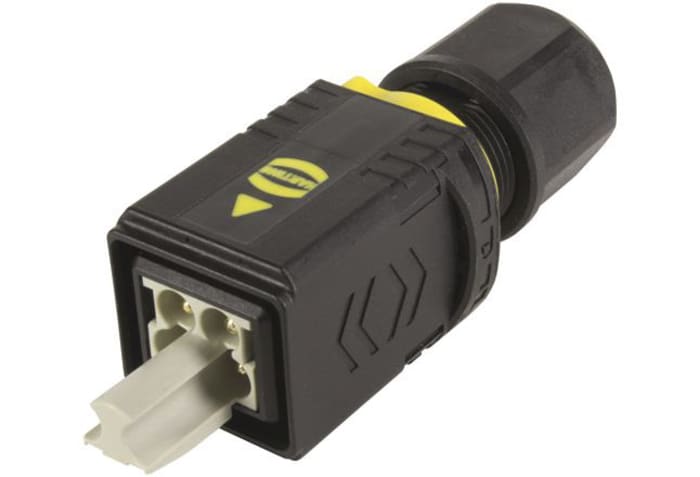

Harting Push Pull Power Plug, HARTING PushPull Series 4 Way
Технически документи
Спецификации
Brand
HartingAccessory Type
Push Pull Power Plug
Gender
Male
Current Rating
12A
Voltage Rating
48 V dc
Number Of Contacts
4
Series
HARTING PushPull
Pole Format
4P
Страна на произход
Romania
Детайли за продукта
Harting PushPull Power 4/0 Connectors and Housings, 4 Pole plus Earth
Harting PushPull Power 4/0 connectors and housings with clamping range of 9-13mm, featuring Han-Quick Lock termination technology which can be field assembled without the need for special tools and also standard crimp terminal connectors versions, 5 poles with a rating of 230/400V, 16A. Connector contacts must be ordered separately for standard crimp terminal types.
IP rated to IP67 once mated
4 pole plus earth contact layout
Operating temperature range -40 to +80 °C
Over 500 mating cycles
Approvals
IEC 61 076-3-117 , IEC 61 076-3-118
Harting PushPull Power Connectors
