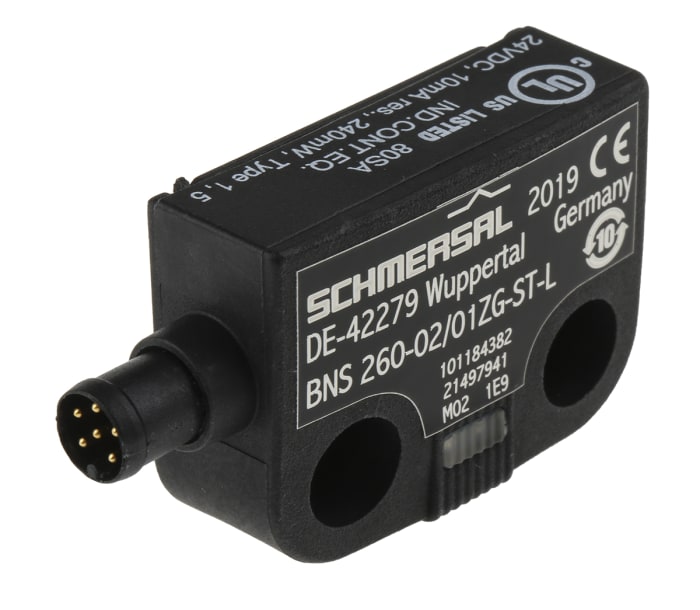

Schmersal BNS260 Series Magnetic Non-Contact Safety Switch, 24V dc, Plastic Housing, NO/NC, M8
Технически документи
Спецификации
Brand
SchmersalSupply Voltage
24V dc
Safety Contacts
NO/NC
Housing Material
Plastic
Connection Type
M8
Actuator Type
Coded
Safety Category
4
Sensor Principle
Magnetic
Actuator Included
No
Series
BNS260
Switching Distance
5 mm, 15 mm
IP Rating
IP67
Supply Current
10mA
Depth
13mm
Width
36mm
Length
52mm
Страна на произход
Germany
Детайли за продукта
BNS 260, Miniature Coded
Smallest design
Actuation only possible with BPS260, available separately
Left-hand or right-hand side versions for door-mounting
Control category up to 4 to EN954-1
IP67 protection
Connector 8 mm, 6-pole, latching interlocking
Dimensions: L13 x W26 x H36 mm
Standards
IEC/EN60947-5-3, BG-GS-ET-14
Информацията за складовите наличности временно не е налична.
Моля, проверете отново по-късно.
€ 124,63
Всеки (ex VAT)
1
€ 124,63
Всеки (ex VAT)
1
