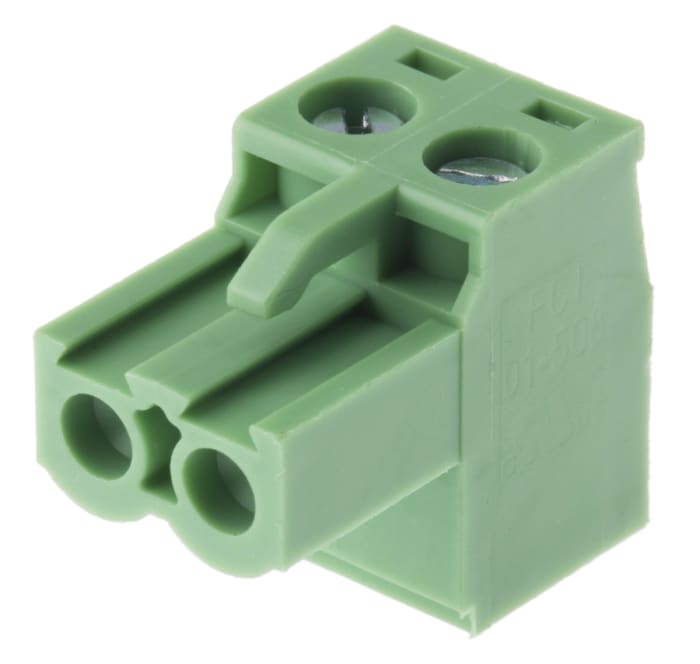

Phoenix Contact, 5.08mm Pitch, MSTB 2.5/2-5.08, 2 Way, , Pluggable Terminal Block, Plug, Cable Mount, Screw
Технически документи
Спецификации
Brand
Phoenix ContactPluggable Terminal Block Type
Plug
Number Of Contacts
2
Pitch
5.08mm
Series
MSTB 2.5/2-5.08
Number Of Rows
1
Body Orientation
Straight
Mounting Type
Cable Mount
Termination Method
Screw
Current Rating
12A
Voltage Rating
630 V
Colour
Green
Material
Nylon
Length
18.3mm
Depth
15mm
Страна на произход
Germany
Детайли за продукта
Phoenix Contact CLASSIC COMBICON MSTB 5.08mm PCB Terminal Blocks
A range of Classic COMBICON MSTB 5.08 mm pitch plug-in cable mount terminal block connectors from Phoenix Contact. The user-friendly PCB terminals feature a 0.2 mm² to 2.5 mm² screw connection that forms a standard plug-in system for 320 V (III/2).
Features and Benefits
• Secure screw connection
• Well-known connection principle allows you to use worldwide
• Maximum contact force gives low temperature rise
• Long service life
€ 11,71
€ 2,342 Each (In a Pack of 5) (ex VAT)
5
€ 11,71
€ 2,342 Each (In a Pack of 5) (ex VAT)
5
Информацията за складовите наличности временно не е налична.
Моля, проверете отново по-късно.
| количество | Единична цена | Per Опаковка |
|---|---|---|
| 5 - 120 | € 2,342 | € 11,71 |
| 125 - 370 | € 2,039 | € 10,20 |
| 375 - 995 | € 1,884 | € 9,42 |
| 1000 - 1995 | € 1,661 | € 8,31 |
| 2000+ | € 1,499 | € 7,50 |
