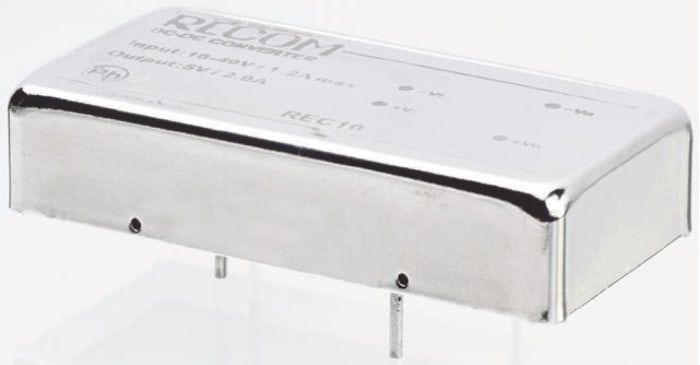

Recom REC10 DC-DC Converter, 5V dc/ 2A Output, 9 → 36 V dc Input, 10W, Through Hole, +71°C Max Temp -40°C Min
Технически документи
Спецификации
Brand
RecomOutput Voltage
5V dc
Input Voltage Range
9 → 36 V dc
Power Rating
10W
Input Voltage Nominal
24 V dc
Output Current
2A
Mounting Type
Through Hole
Isolated
Yes
Number of Outputs
1
Package
1 x 2 in
Isolation Voltage
1 kV ac, 2kV dc
Depth
10.2mm
Length
50.8mm
Series
REC10
Load Regulation
±0.5%
Minimum Temperature
-40°C
Medical Approved
Yes
Maximum Temperature
+71°C
Страна на произход
Taiwan, Province Of China
Детайли за продукта
Recom 10W Single/Dual Output Regulated Isolated DC-DC Converter - REC10-M Series
The Recom REC10/M is a series of isolated DC/DC converters. This Regulated converter offers single and dual outputs in a small package. The REC10/M can deliver 150% rated power for short periods of time, to cope with applications with large capacitive loads or high start up currents. This Recom DC/DC regulated converter comes with remote control on/off as standard and is suitable for high power industrial applications.
10W in 2” x 1” Package
2kVdc and 3kVdc Isolation Options
2:1 or 4:1 input Voltage Range
Continuous Short Circuit Protection (power limiting)
Synchronous Rectification
Full SMD internal design
Remote Control Pin
Efficiency up to 87%
Standards
EN-60950-1, UL-60950-1
Ideate. Create. Collaborate
JOIN FOR FREE
No hidden fees!
- Download and use our DesignSpark software for your PCB and 3D Mechanical designs
- View and contribute website content and forums
- Download 3D Models, Schematics and Footprints from more than a million products
€ 46,59
€ 46,59 Всеки (ex VAT)
1
€ 46,59
€ 46,59 Всеки (ex VAT)
1
Информацията за складовите наличности временно не е налична.
Моля, проверете отново по-късно.
| количество | Единична цена |
|---|---|
| 1 - 4 | € 46,59 |
| 5 - 9 | € 45,20 |
| 10 - 24 | € 43,80 |
| 25 - 49 | € 42,40 |
| 50+ | € 41,01 |
